Automatic vacuum tissue processor
For histological samples
Simple, reliable and low cost processing for high capacity. (PRO300)
System Advantages
Improved cabinet design
Through the easy-to-use touch screen, all the operating parameters (programs, temperatures, timing, vacuum and levels) can be freely modified.
Full process control
Real-time process data about key instrument settings, such as current filling status, temperature and pressure inside the retort, paraffin bath temperature, as well as status of the paraffin bath and retort heating systems, is always available.
Saving cost
An active extraction process ensures efficient reagents quality, which extends paraffin life, improves tissue quality, and reduces operating costs.
Easy accessibility
- Ergonomic design provides easy accessibility
- External access for easy draining of exhaust paraffin
Remote fill and drain enhances user safety
User safety is enhanced by a fully enclosed fume sy- stem and by the improved reagent bottle and cabinet design to prevent the risk of contact and reagent carry-over.
Technical support and after sale
Histo-Line offers a complete technical support for you.
We find together the best solution for you and your
instrument in certain and quick times.
- Technical Support Products: info@pkmec.com
- Technical Support Equipments: 042-354-33-333

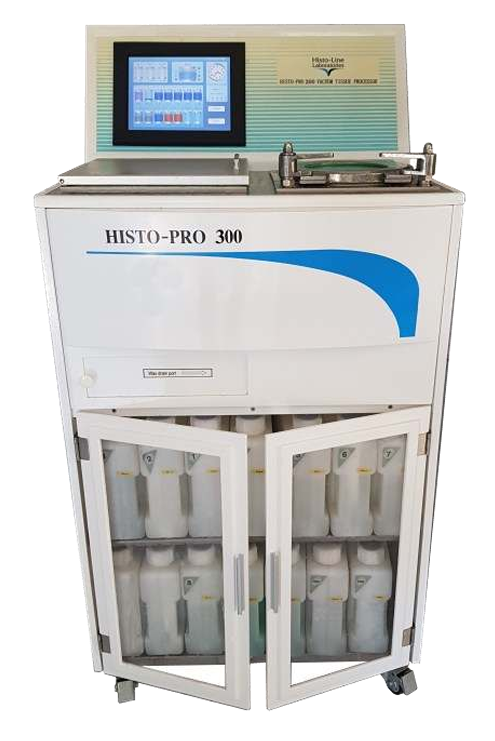

The Histo-Pro, designed for routine clinical
and research histopathology.
Is an innovative, smart tissue processor for paraffin infiltration of tissue for histological samples
High quality specimens
- Tempered glass window retort.
- Capacity up to 300 cassettes with 20 programs that
consist of up to 10 reagent and 3 paraffin wax steps. - Three different reagent level according to sample
quantity processed.
Select your favorite programs
- The operator can set the different programs varied
in duration, temperature. - Alarm system for wrong operation and troubles.
- Multiple specimen protection system.
Easy to use
- Large Touch-screen color Liquid Crystal Display (LCD).
- User-friendly, smart icons software.
- Easy-to-remember operating procedures on touch.
screen interface
Technical features
Process chamber
Capacity: 300 standard cassettes contained in a stainless steel drum, up to 3 floors with two separators and a closing top cover.
Paraffin tank: 3
Volume: 4 lt each
Melting time (approximate): 3 hours
Temperature: 50°C – 65°C ± 1°
Recirculation (pump in/out): ON/OFF with a frequency of 15 minutes
Impregnation vacuum: -70 kPa (g)
Impregnation pressure: 35 kPa (g)
Fill vacuum: -70 kPa (g)
Drain pressure: 35 kPa (g)
Software
Display: Large 14″ touch screen liquid crystal display (LCD)
Alarm system: Available as a reminder or in case of failure
Sample protection: Multiple protection systems for samples
Programs: 10 freely settable programs, supporting up to 10 reagent steps and 3 paraffin steps
Time per program step: 0 to 99 hours, 59 minutes
Temperature accuracy: ± 1°C
Max. delay time: 14 days, 23 hours, 59 minutes
Reagent capacities
Bottles numbers: 14
Reagents bottles: 10
Cleaning solution bottles: 2
Condensate bottle: 1
Carbon filter bottle: 1
Reagent bottle volume: 6.0 lt
Temperature reagents: Ambient or 35°C
Temperature cleaning reagents: 50°C – 65°C
Filling / drain time: Up to 5 min
