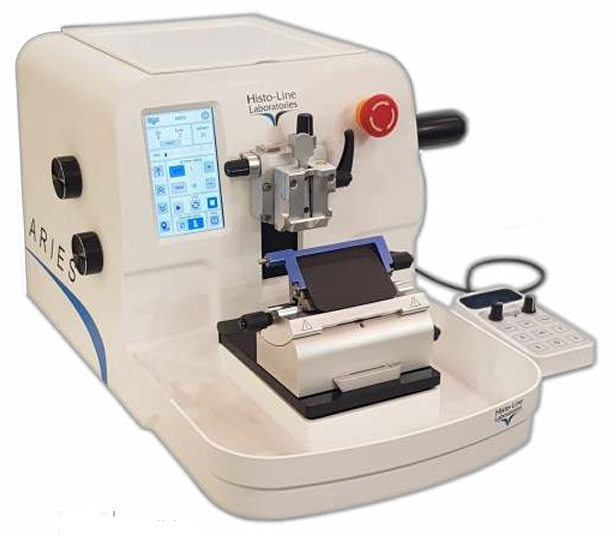

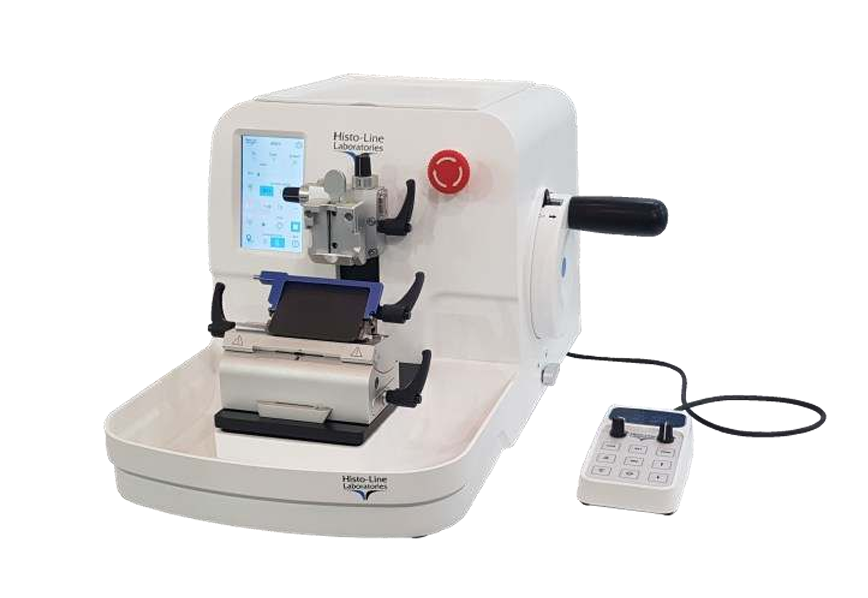

Aries - Full Automatic Programmable Microtome
For routine staining
Applications of routine histopathology
System Advantages
Ergonomic design
- Recessed staging area for convenient placement of blades, brushes and other ancillary tools.
- For optimal cutting comfort. Integrated waste trays to save you time and energy.
The precision to cut
- Microtome for cut quality sections with consistent thickness.
- Produce high quality paraffin sections for H&E, IHC and molecular techniques.
Stable and without vibrations
- Silent retraction reduces noise during prolonged use.
- Robust and stable support for excellent cuttingperformances.
Safety to use
- Precise lateral knife holder adjustment, with three predefined stop positions.
- Blade removal system and blade holder with cutting protection for operator’s safety

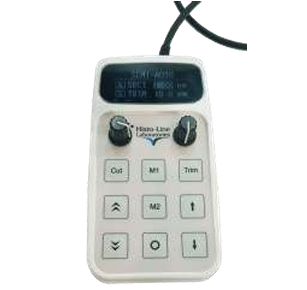

Pad remote control
Ergonomic pad remote control, to be freely placed by the operator, easy to use
Flexible
Long stroke length allows high quality sections of Macro / SuperMega cassettes.
Multi-function mode
Complete function of automatic sectioning, slice coun- ting, microns counting, fast trimming. Two differents trimming memory positions can be set by user. This allow a fast sample position.
Technical support and after sale
Histo-Line offers a complete technical support for you.
We find together the best solution for you and your
instrument in certain and quick times.
- Technical Support Products: info@pkmec.com
- Technical Support Equipments: 042-354-33-333
Motorized rotary microtome for high-performance
Is an innovative, smart microtome for routine histopathology applications and research field
Safety first

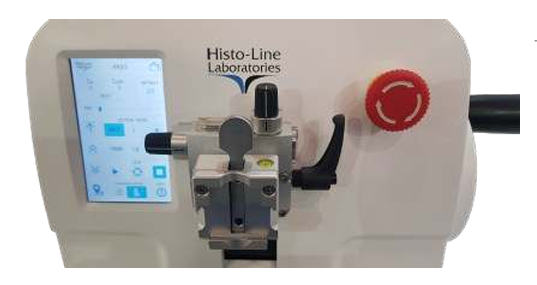

Accurately align the block face to the blade edge, using the specimen orientation system with zero-position centering.
The blade ejector and magnetic brush enable the user to safely remove the blade from the blade holder without touching it.
Blade holder with adjustable cutting angle to the use of any type of disposable blades.
Adapted to your needs
Choose between conventional, full hand-wheel
rotation, manual sectioning or “rocking mode”, where
the hand-wheel is turned back and forth over a short
distance.
Reduce risk of cutting injuries
The hand wheel can be locked at any position, so as
to ensure the safety of the operation. Safe quick braking system; precise electronic mechanicdesign

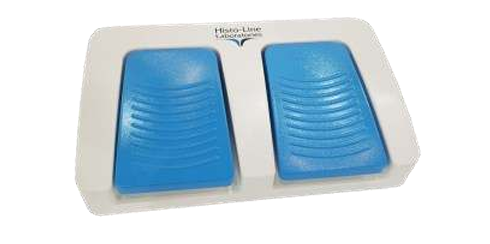

Wireless control pedal
- The new pedal of the microtome Aries is different from those available in the market.
- Pedal supplied connected to the microtome, in wireless mode, for starting and stopping the cut.
Histo-Line complete range of solutions for Microtomy
MRS3500
Gemini Semi Automatic Microtome
MR3000
Libra Manual Microtome
Technical features
Sectioning thickness setting range
Range of the slice thickness: 0,25 – 100 um
0,25 to 2,5 um in 0,25 um increments
2,5 to 5 um in 0,5 um increments
5 to 10 um in 1 um increments
10 to 30 um in 2 um increments
30 to 60 um in 5 um increments
60 to 100 um in 10 um increments
Trimming thickness setting range
Range of the slice thickness: 1 – 600 um
1 to 10 um in 1 um increments
10 to 20 um in 2 um increments
20 to 50 um in 5 um increments
50 to 150 um in 10 um increments
150 to 600 um in 50 um increments
Movable range for the blade holder basal
Forward/Backward: ±65 mm
Left / Right: ±40 mm
Vertical stroke
72 mm ±1 mm
Retraction
Manual mode: 5-100 um in increments of 5 um
Automatic mode: According to speed, can be deactivated
Spiecimen orientation
Horizontal: 8, vertical: 8 , rotation 360°
Spiecimen orientation
Horizontal: 8, vertical: 8 , rotation 360°
Maximum specimen size
Standard clamp (HxWxD): 55x50x30 mm
Super mega cassette clamp (HxWxD): 68x48x15 mm
Specimen feed
30 mm ±1 mm
Size and weight
Width: 475 mm
Depth (including tray): 580 mm
Depth (excluding tray): 510 mm
Height: 340 mm
Weight: 40 kg
Regulatory
CE-IVD

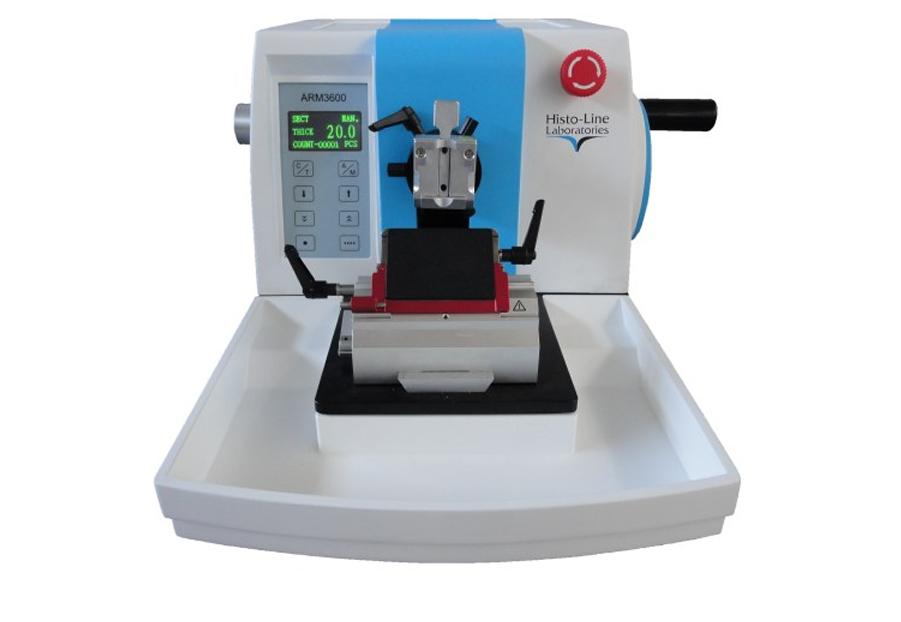

Fully Motorized Rotary Microtome
For routine staining
Applications of routine histopathology
System Advantages
Ergonomic design
Recessed staging area for convenient placement of blades, brushes and other ancillary tools.
For optimal cutting comfort. Integrated waste trays to
save you time and energy
The precision to cut
Microtome for cut quality sections with consistent thickness.
Produce high quality paraffin sections for H&E, IHC and molecular techniques.
Stable and without vibrations
Silent retraction reduces noise during prolonged use. Robust and stable support for excellent cutting performances.
Safety to use
- Precise lateral knife holder adjustment, with three predefined stop positions.
- Blade removal system and blade holder with cutting protection for operator’s safety
Flexible
Long stroke length allows high quality sections of Macro / SuperMega cassettes
Technical support and after sale
Histo-Line offers a complete technical support for you.
We find together the best solution for you and your
instrument in certain and quick times.
- Technical Support Products: info@pkmec.com
- Technical Support Equipments: 042-354-33-333

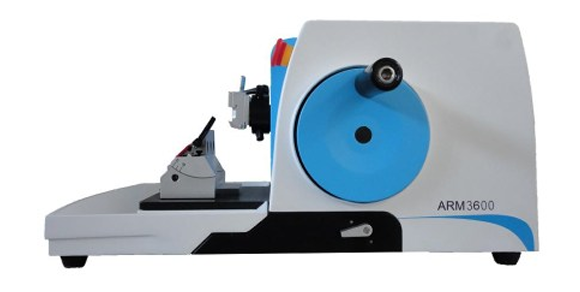

Simple and inexpensive motorized rotary microtome
Smart microtome for routine histopathology applications and research field
Adapted to your needs

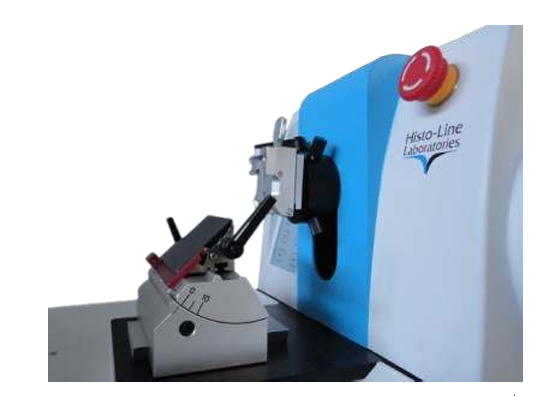

The blade ejector and magnetic brush enable the user
to safely remove the blade from the blade holder
without touching it.

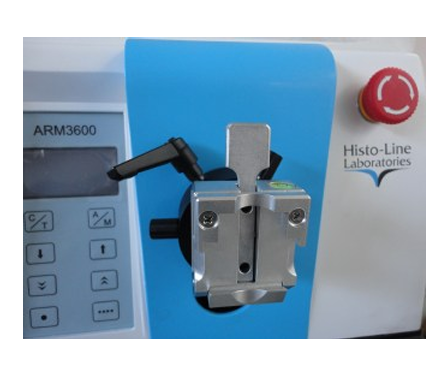

Blade holder with adjustable cutting angle to the use of
any type of disposable blades.
Safety first
Safety button to stop automatic rotation at any time.
Reduce risk of cutting injuries

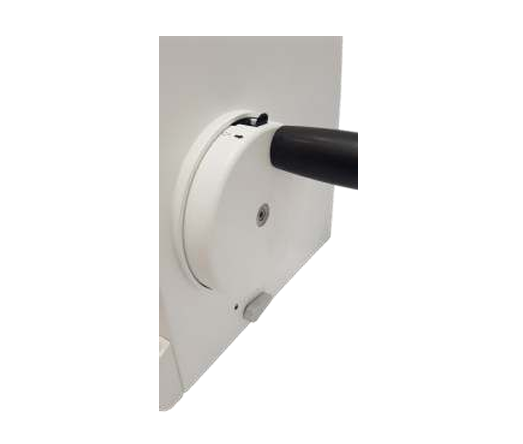

The hand wheel can be locked at any position, so as
to ensure the safety of the operation.
